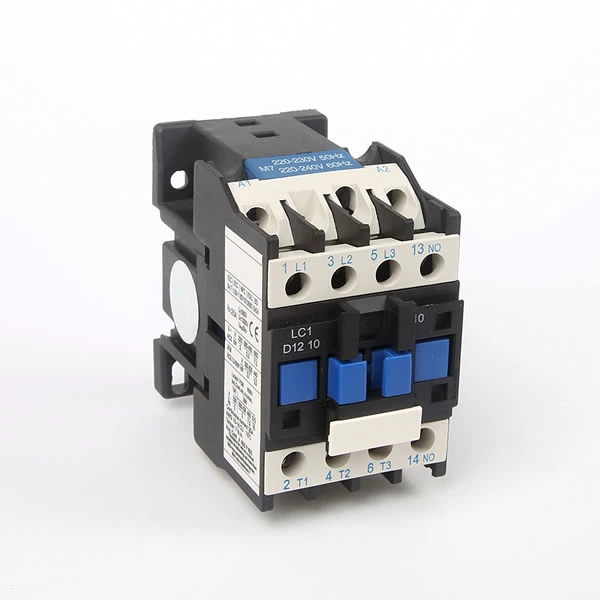

Old Type AC Contactor  LC1-D18

Old Type AC Contactor  LC1-D18



1.GENERAL



  • 1.1 Certificates: CE;
  • 1.2 Electric ratings: AC50/60Hz, 690v, up to 95A;
  • 1.3 Application: remote making & breaking circuits, protect circuit from over-load when assembling with thermal over-load relay, frequent start-up and control of AC motor;
  • 1.4 Utilization category: AC-3,AC-4;
  • 1.5 Altitude:≤2000m;
  • 1.6 Ambient temperature: -5℃~+40℃;
  • 1.7 Mounting category: IlI;
  • 1.8 Mounting conditions: inclination between the mounting plane and the vertical plane
  • should not exceed士5°;
  • 1.9 Standard: lEC/EN 60947-4-1.



2.TECHNICAL DATA



Items Model LC1-D09 ( Z ) LC1-D12 ( Z ) LC1-D18 ( Z ) LC1-D25 ( Z ) LC1-D32 ( Z )
Pole 3/4 3/4 3 3/4 3
Auxiliary Contact 1NO/1NC 1NO/1NC 1NO/1NC 1NO/1NC 1NO/1NC
Rated conventional heating current (A) AC-1 20 20 30 40 50
Rated operational
current (A)
380/400V AC-1
AC-4
9 12 18 25 32
3.5 5 7.7 8.5 12
660/690V AC-3
AC-4
6.6 8.9 12 18 21
1.5 2 3.8 4.4 7.5
Rated insulation voltage (V AC) 690 690 690 690 690
Power of controlled
3-phase
cage motor (AC-3)
KW 220/230V AC
380/415V AC
660/690V AC
2.2 3 4 5.5 7.5
4 5.5 7.5 11 15
5.5 7.5 10 15 18.5
AC coil(V) 24,36,48,110,127,220,240,380,415,440,480,500,600
DC coil(V) 24,36,48,110,220
Items Model LC1-D40 ( Z ) LC1-D50 ( Z ) LC1-D65 ( Z ) LC1-D80 ( Z ) LC1-D95 ( Z )
Pole 3/4 3/4 3/4 3/4 3/4
Auxilirary Circuit Cat:AC-15,Ue=4 15V le=0.95A Ith=10A 1NO+1NC 1NO+1NC 1NO+1NC 1NO+1NC 1NO+1NC
Rated conventional heating current (A) AC-1 60 80 80 125 125
Rated operational
current (A)
380/400V AC-3
AC-4
40 50 65 80 95
18.5 24 28 37 44
660/690V AC-3
AC-4
34 39 42 49 49
9 12 14 17.3 21.3
Rated insulation voltage (V AC) 690 690 690 690 690
Power of controlled
3-phase
cage motor (AC-3)
KW 220/230V AC
380/415V AC
660/690V AC
11 15 18.5 5.5 25
18.5 22 30 37 45
30 37 37 45 45
AC coil(V) 24,36,48,110,127,220,240,380,415,440,480,500,600
DC coil(V) 24,36,48,110,220



3. ACCESSORIES

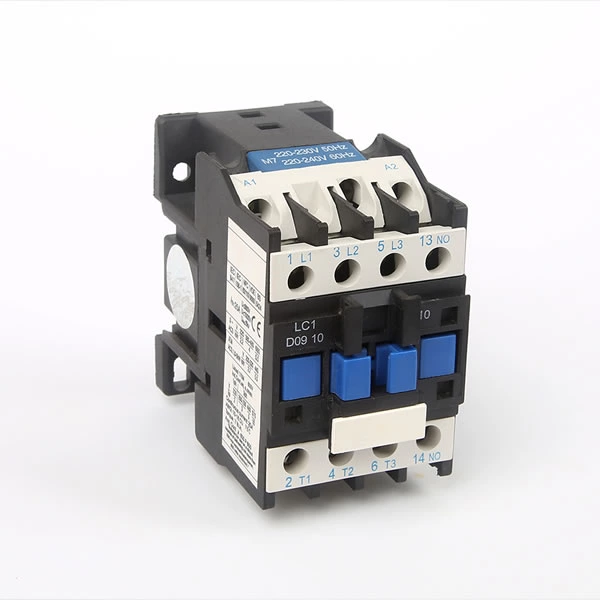

Old Type AC Contactor  LC1-D09
