New Type AC Contactor LC1-D25



1. GENERAL

  • 1.1 Certificates: CE;
  • 1.2 Electric ratings: AC50/60Hz, 690V, up to 620A ;
  • 1.3 Application: remote making & breaking circuits, protect circuit from over-load when assembling with thermal over-load relay, frequent start-up and control of AC motor; .
  • 1.4 Utilization category: AC-3, AC-4;
  • 1.5 Altitude:≤2000m;
  • 1.6 Ambient temperature: -5℃~ +40℃;
  • 1.7 Mounting category: Ⅲ;
  • 1.8 Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed 士5° ;
  • 1.9 Standard: IEC/EN 60947-4-1.



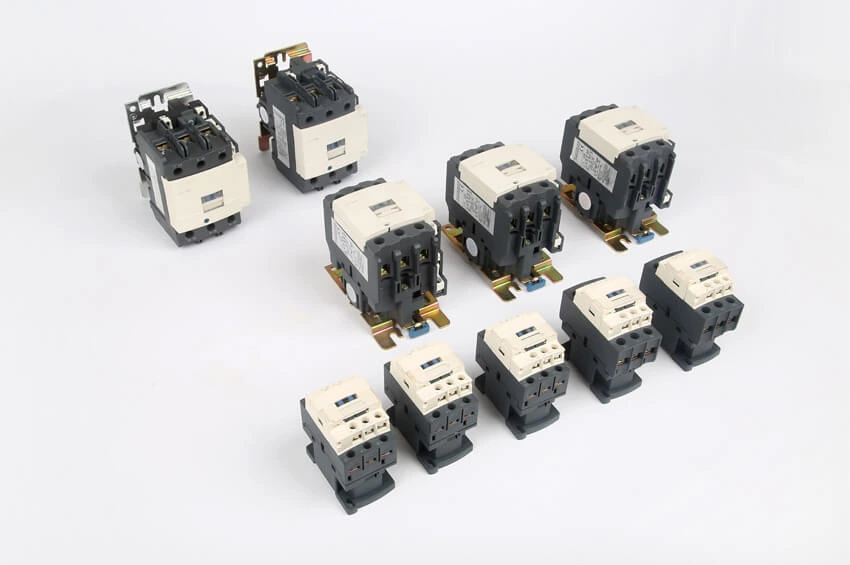

2.TECHNICAL DATA

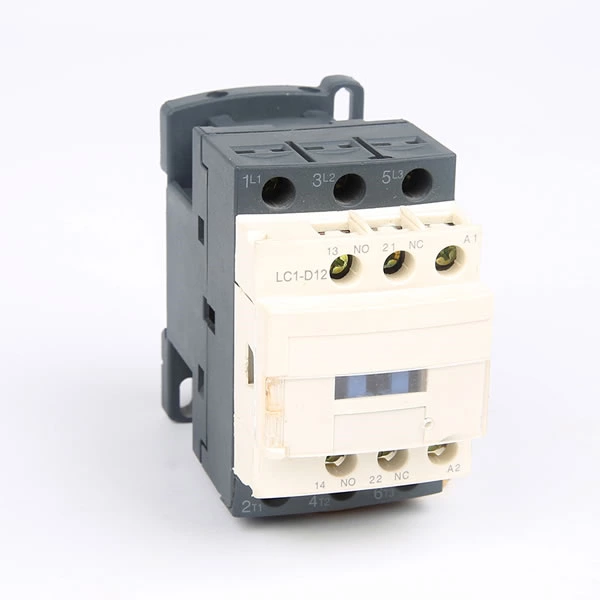

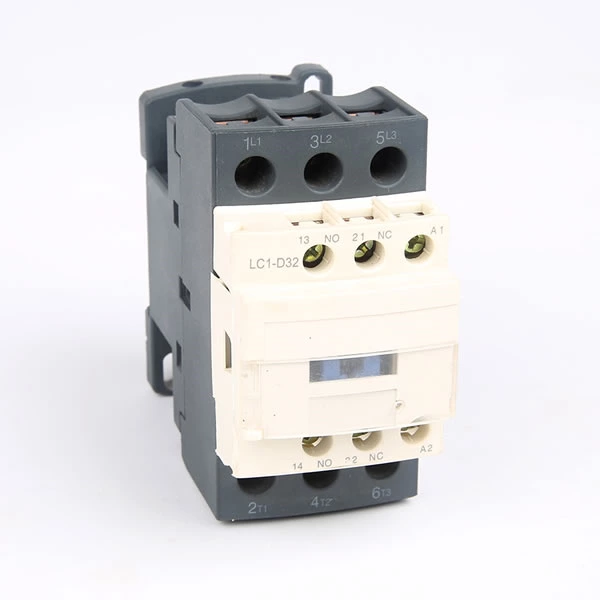

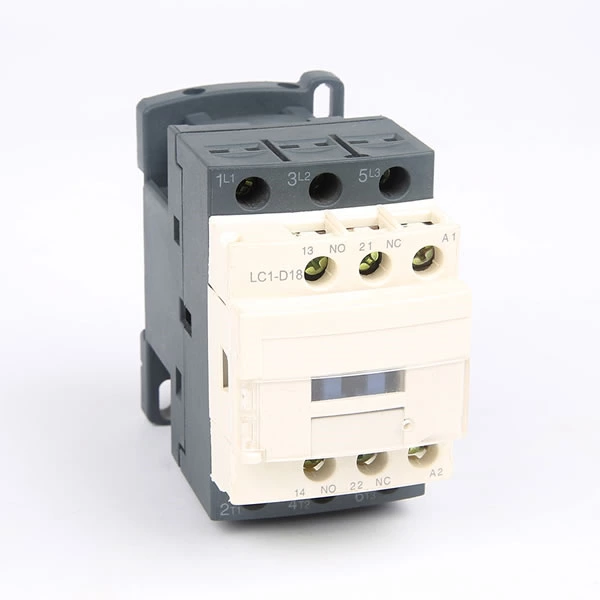

Items Model LC1-D09 LC1-D12  LC1-D18 LC1-D25 LC1-D32
Pole 3/4 3/4 3/4 3/4 3/4
Auxiliary Contact 1NO+1NC 1NO+1NC 1NO+1NC 1NO+1NC 1NO+1NC
Rated conventional heating current (A) AC-1 20 20 30 40 50

Rated operational

current (A)

380/400V AC-1
AC-4
9 12 18 25 32
3.5 5 7.7 8.5 12
660/690V AC-3
AC-4
6.6 8.9 12 18 21
1.5 2 3.8 4.4 7.5
Rated insulation voltage (V AC) 690 690 690 690 690
Power of controlled
3-phase
cage motor (AC-3)
kW 220/230V AC
380/415V AC
660/690V AC
2.2 3 4 5.5 7.5
4 5.5 7.5 11 15
5.5 7.5 10 15 18.5
AC coil(V) 24,36,48,110,127,220,240,380,415,440,480,500,600
DC coil(V) 24,36,48,110,220



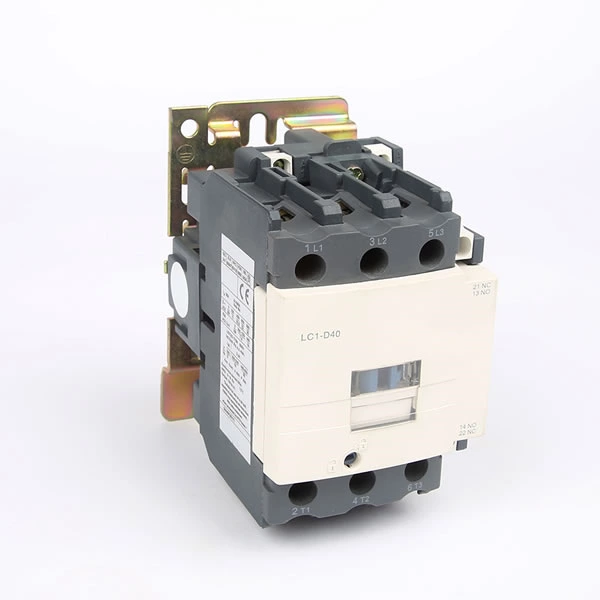

Items Model LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95
Pole 3/4 3/4 3/4 3/4 3/4
Auxilirary Circuit Cat:AC-15,Ue=4 15V le=0.95A Ith=10A 1NO+1NC 1NO+1NC 1NO+1NC 1NO+1NC 1NO+1NC
Rated conventional heating current (A) AC-1 60 80 80 110 110
Rated operational
current (A)
380/400V AC-3
AC-4
40 50 65 80 95
18.5 24 28 37 44
660/690V AC-3
AC-4
34 39 42 49 49
9 12 14 17.3 21.3
Rated insulation voltage (V AC) 690 690 690 690 690
Power of controlled
3-phase
cage motor (AC-3)
KW 220/230V AC
380/415V AC
660/690V AC
11 15 18.5 22 25
18.5 22 30 37 45
30 37 37 45 45
AC coil(V) 24,36,48,110,127,220,240,380,415,440,480,500,600
DC coil(V) 24,36,48,110,220



Items Model LC1-D115 LC1-D150 LC1-D170 LC1-D205 LC1-D245
Pole 3 3 3 3/4 3/4
Rated conventional heating current (A) AC-1 200 200 200 275 280
Rated operational
current (A)
380/400V AC-3
AC-4
115 150 170 205 245
50 65 70 75 85
660/690V AC-3
AC-4
70 90 100 108 115
25 32 35 38 40
Rated insulation voltage (V AC) 690 690 690 690 690
Power of controlled
3-phase
cage motor (AC-3)
kW 380/415V AC
660/690V AC
55 75 75 90 110
80 100 100 110 140
AC coil(V) 110,127,220,240,380,415,440,480,500,600



Items Model LC1-D300 LC1-D410 LC1-D475 LC1-D620
Pole 3/4 3/4 3/4 3/4
Rated conventional heating current (A) AC-1 360 430 580 850
Rated operational
current (A)
380/400V AC-3
AC-4
300 410 475 620
124 150 185 188
660/690V AC-3
AC-4
190 235 290 360
60 72 85 170
Rated insulation voltage (V AC) 690 690 690 690
Power of controlled 3-phase
cage motor (AC-3)
kW 380/415V AC
660/690V AC
160 200 250 335
220 280 330 450
AC coil(V) 110, 127,220,240,380,415,440,480,500,600

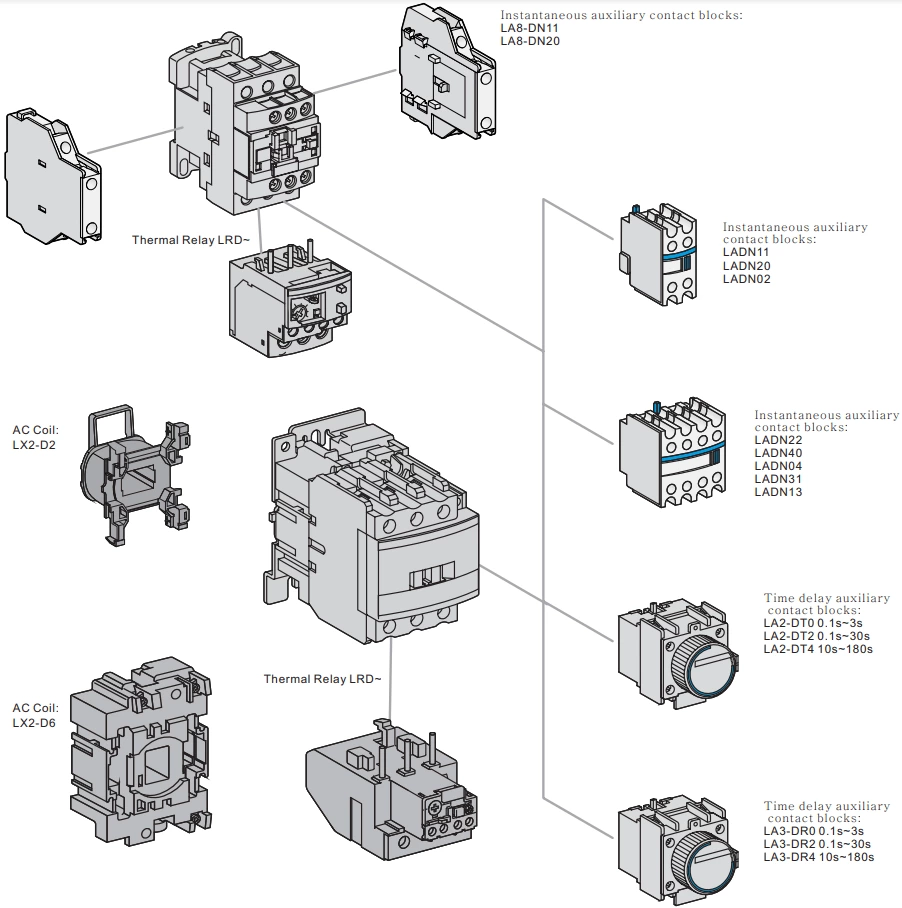

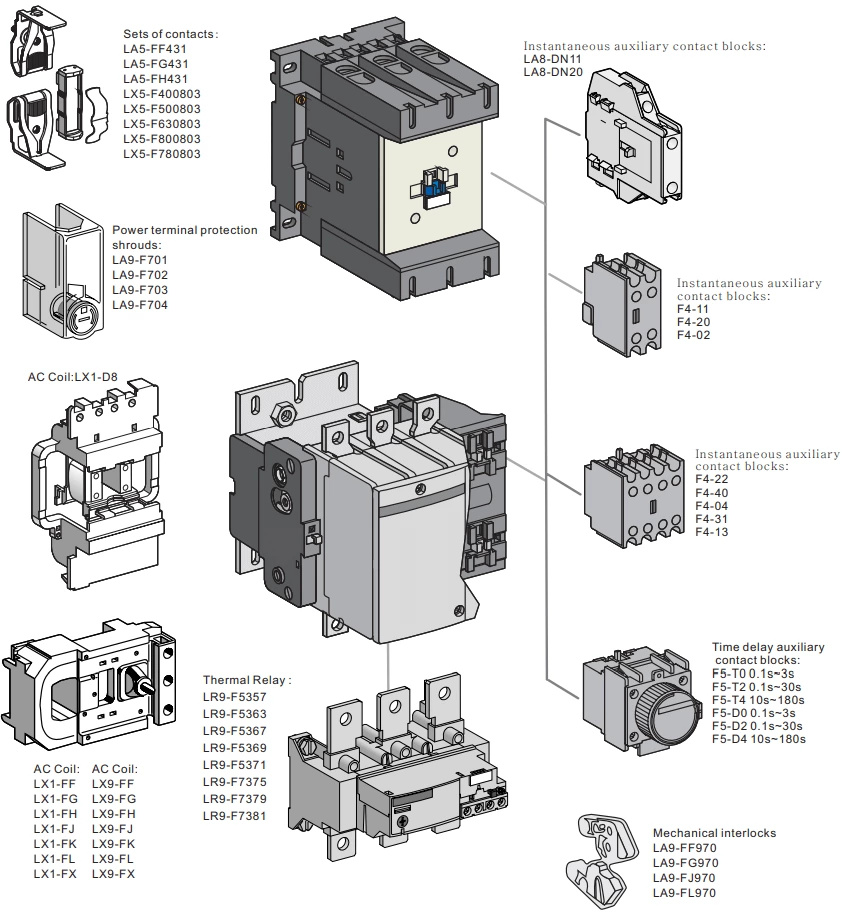

3.ACCESSORIES
