Pole Top Box

Contact Now

Pole Top Box
Pole Top Box Pole Top Box Pole Top Box

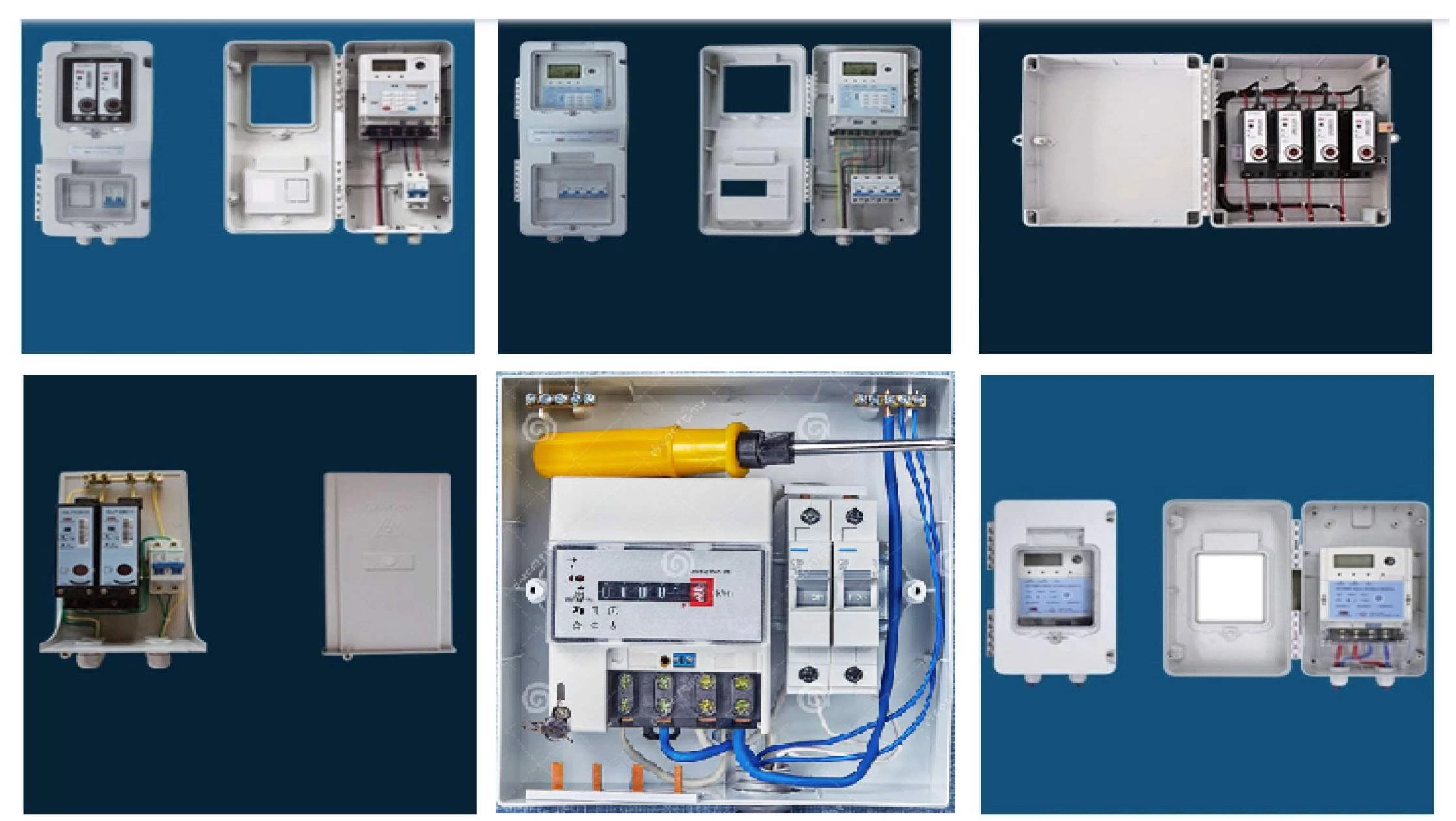

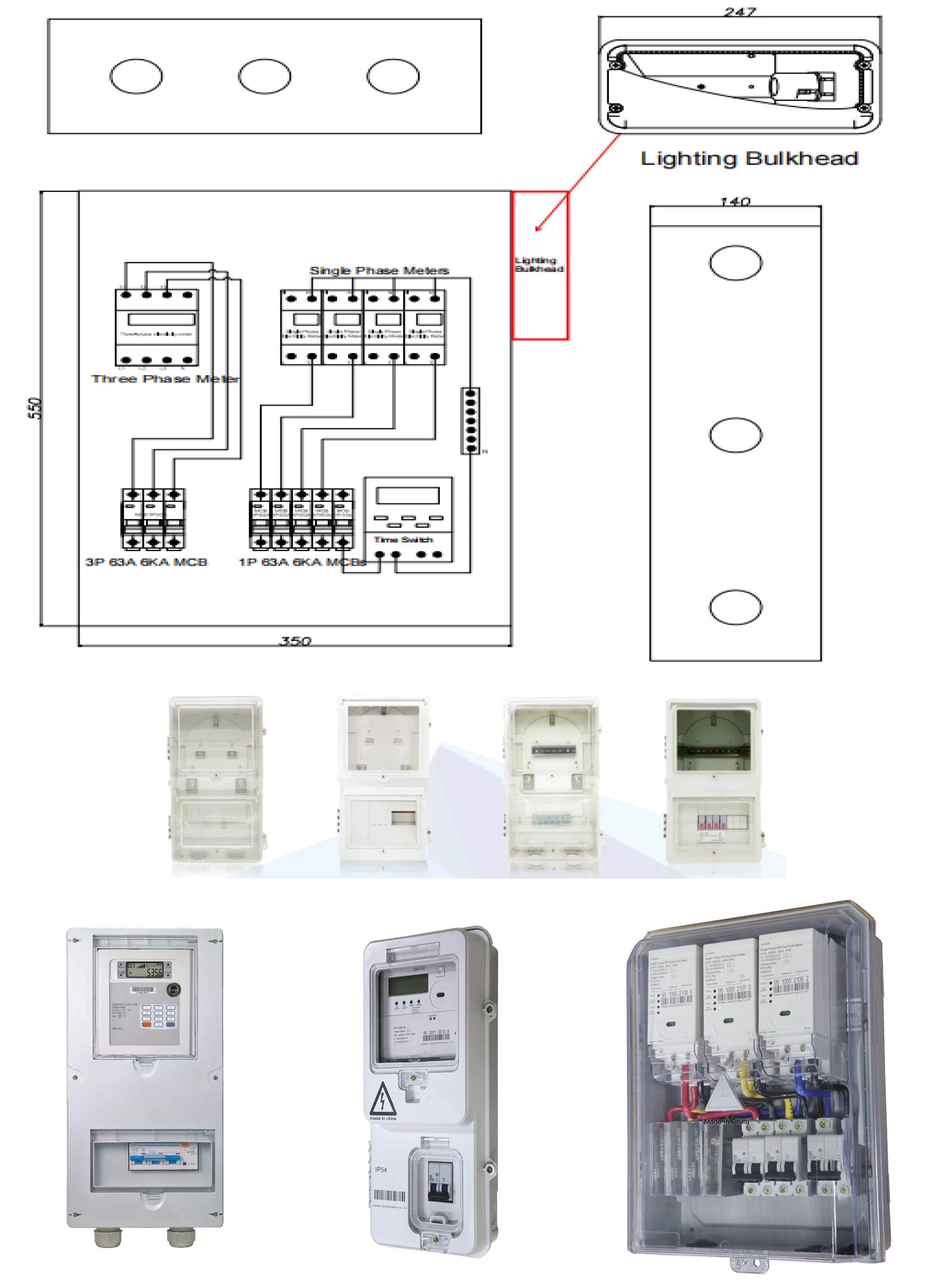

Pole Top Boxes are specially designed for the purpose of antitamper and protection of meter and power distribution. Maximum 12(twelve) pcs DIN Rail meters can be mounted with bottom connection. It can also accommodate 4PCS BS type single phase split meter and 1PCS BS type three phase split meter. The material of enclosure is Fiberglass (SMC) with UV resistance and V0 frame resistance degree. Pole mounted or wall mounted and Lock, key protection are based on project demand. Alarm sensor for enclosure opening is reserved function.It is widely used in for power terminal system in city and village

All could be customized!

Items Parameters
Dimension L550mm*W350mm*D140mm (optional)
Material of top Cover Fiberglass reinforced polyester
Material of base Fiberglass reinforced polyester
Protection Degree IP65, IK10
Anti-UV Yes
Flame resistance degree V0
Installation provision for MCB YES
Anti-tamper protection Seal and padlock for cover,and seal for windows
Temperature -30ºC to 80ºC
Heat dissipation Ventilation hole for cooling
Method of production Injection
Mounting methods Pole mounted by stainless steel strap or wall mounted by screw
