Sheet Steel Metal Fabrication Electric Switches Wall Box Electrical Distribution Box

Type
Outdoor/indoor
Size
300mm*300mm*150mm
Application
Electric Power Transmission
Material
Sheet Steel/Stainless steel
Certificate
ISO9001:2008/ROHS/UL/SGS
Contact Now

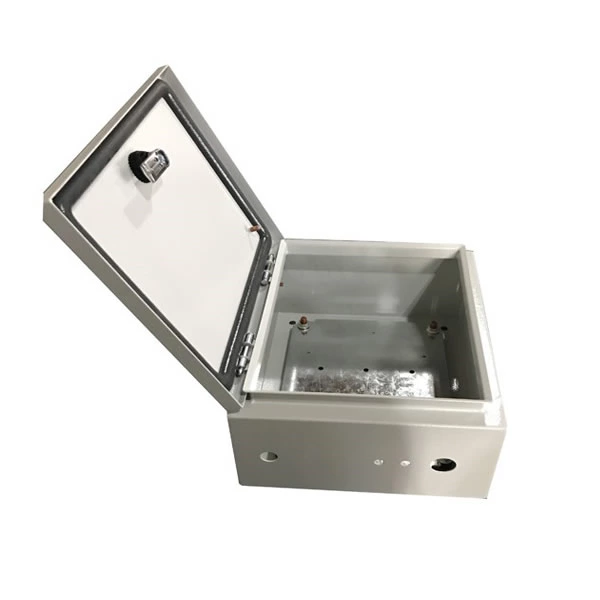

Sheet Steel Metal Fabrication Electric Switches Wall Box Electrical Distribution Box
Sheet Steel Metal Fabrication Electric Switches Wall Box Electrical Distribution Box Sheet Steel Metal Fabrication Electric Switches Wall Box Electrical Distribution Box Sheet Steel Metal Fabrication Electric Switches Wall Box Electrical Distribution Box

Product Description

Item Name Distribution Box
Material Sheet Steel/Stainless Steel
Thickness 1.0mm*1.2mm*1.2mm
Waterproof IP66
Certificate CE,ROHS
OEM Available
Color RAL7035, and also can customized.

General of Distribution Box:

1.Seal Strip forming by Full-automatic Pouring Machine One-time, Self-skinning.    Waterproof, Fireproof, High Temperature Resistance, High Intensity, Nice Outlook,etc.
2.The Hinge Connected by Flange Screw, so that the Door can be Exchanged between Right and Left.    No Self Off and No Crack.
3.Brand New Structure for Screw Mounted, and Sealing Ring add to Connection of Bolts and Screws.    Waterproof and Dustproof.
4.Piercing Installation for Bottom Board,and Flange Screw for Connecting, Thus Easy to Assemble and Disassemble, and Much Stronger and Durable.
5.New Design of Bottom Board Structure, can Acheive Greater Load-bearing, and can Meet Electrical Installation Requirements Better.

Parameters of Distribution Box:

Item No. Width (mm) Height (mm) Depth (mm) Width for Installation (mm) Height for Installation  (mm)
GP-3025/20 250 300 200 190 325
GP-3025/25 250 300 250 190 325
GP-3030/20 300 300 200 240 325
GP-3030/25 300 300 250 240 325
GP-4030/20 300 400 200 240 425
GP-4030/25 300 400 250 240 425
GP-5040/20 400 500 200 340 525
GP-5040/25 400 500 250 340 525
GP-6040/20 400 600 200 340 625
GP-6040/25 400 600 250 340 625
GP-6050/20 500 600 200 440 625
GP-6050/25 500 600 250 440 625
GP-7050/20 500 700 200 440 725
GP-7050/25 500 700 250 440 725
GP-8060/20 600 800 200 540 825
GP-8060/25 600 800 250 540 825
GP-10080/20 800 1000 200 740 1025
GP-10080/25 800 1000 250 740 1025

Dimension

Dimension
